| Place of Origin: | China |
| Brand Name: | Shuowei |
| Certification: | CE SGS ISO9001 |
| Model Number: | R series |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Piece Per Month |
| Customized Support: | OEM | Gearing Arrangement: | Helical |
|---|---|---|---|
| Input Speed: | Less Than 3600RPM | Product Name: | Speed Reducer |
| Housing Material: | HT250 High-strength Cast Iron | Oil Seal: | NAK Brand VITON Or NBR |
| High Light: | 90 Degree Helical Bevel Gearbox,Screw Conveyor Helical Bevel Gearbox,Screw Conveyor Helical Bevel reducer |
||

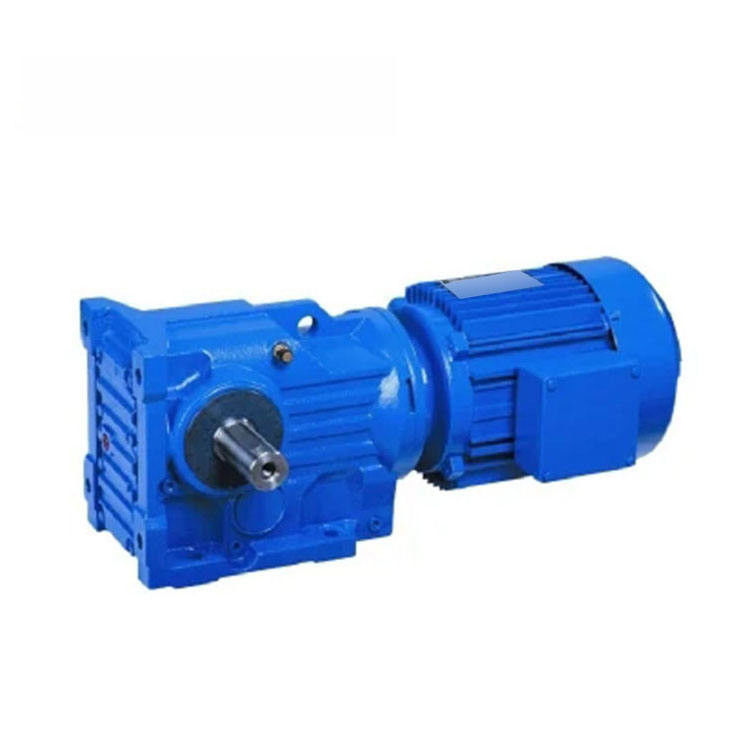

90 Degree Sew Gear Motor Belt Conveyor Motor Reducer Helical Bevel Gearbox For Screw Conveyor
| Type | Helical Bevel Gearbox / Reducer |
| Model | WK37~WK187 |
| Mounting Position | Flange, hollow shaft, solid shaft |
| Efficiency | 94%~98%(depends on the transmission stage) |
| Material | Housing: HT250 high strength cast iron |
| Gear: 20CrMnTi | |
| Surface hardness of gears | HRC58~62 |
| Input/output shaft material | 40Cr |
| Machining precision of gears | Accurate grinding, 6 grade |
| Warranty | 1 Year |
| Input Power |
0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW, 11Kw and so on. |
| Usages |
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Wood working, Glass. |
| IEC Flange | IEC standard flange |
| Lubricant oil | Gear oil |
We are offerings series helical-worm geared motor
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
