| Place of Origin: | China |
| Brand Name: | Shuowei |
| Certification: | CE SGS ISO9001 |
| Model Number: | R series |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Piece Per Month |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Gear & Gear Shaft Material: | 20 CrMnTi |
|---|---|---|---|
| Input Speed: | 1400rpm(4pole) | Material: | Cast Iron |
| Mounting Position: | Horizontal (foot Mounted) | Heat Treatment: | Tempering, Cementiting, Quenching,etc |
| High Light: | Flange Mounted inline speed reducers,4 pole inline speed reducers,Flange Mounted helical bevel reducer |
||

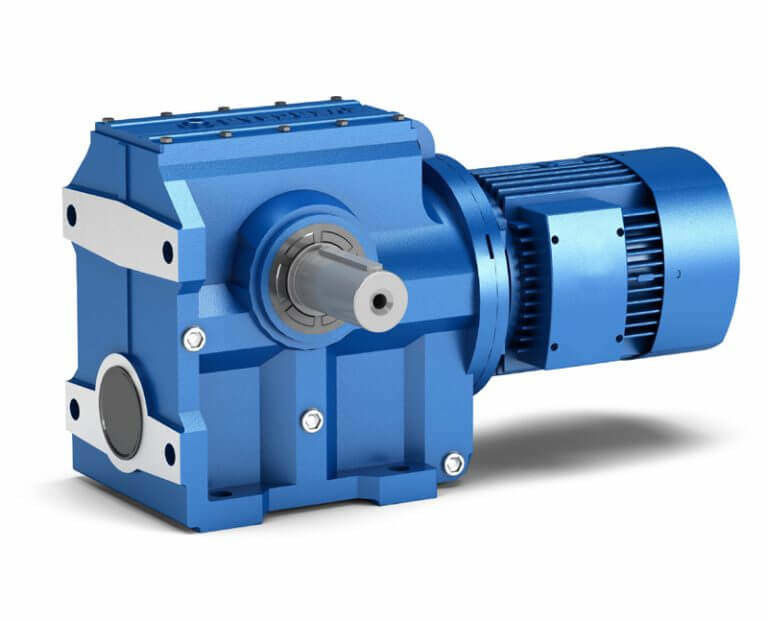

Helical Worm Geared Motors Speed Reducer Flange-Mounted Hollow Shaft
This series worm-gear reducer was designed after RV worm microreducer, which have a complete norm, wide speed for selection, and many mounting positions. Its performance and mounting dime nsions conform the same kinds of foreign. The combination of worm and gear has higher efficiency and wider speed range to single worm. Designation of square shape, beautiful shape, compact structure, radiate heat efficiently and low noise. Good sealing and adaptability.Its combination with T gear reducer and MB/MBN variator can meet all kinds of speed requirement.
|
Product Name
|
S Series helical gearbox reducer
|
|
Material
|
cast iron;40Cr
|
|
Color
|
customers' requirements
|
|
Noise (MAX)
|
65~70dB
|
|
Temp. rise (MAX)
|
40 C
|
|
Temp. rise (Oil)(MAX)
|
50 C
|
|
Power
|
0.12~200KW
|
|
Transmission ratio
|
4~280
|
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)
|
Models
|
Output Shaft Dia.
|
Input Shaft Dia.
|
Power(kW)
|
Ratio
|
Max. Torque(Nm)
|
|
R/RF18
|
20mm
|
-
|
0.18~0.75
|
3.83~74.84
|
85
|
|
R/RF28
|
25mm
|
16mm
|
0.18~3
|
3.37~135.09
|
130
|
|
R/RF38
|
25mm
|
16mm
|
0.18~3
|
3.41~134.82
|
200
|
|
R/RF48
|
30mm
|
19mm
|
0.18~5.5
|
3.83~176.88
|
300
|
|
R/RF58
|
35mm
|
19mm
|
0.18~7.5
|
4.39~186.89
|
450
|
|
R/RF68
|
35mm
|
19mm
|
0.18~7.5
|
4.29~199.81
|
600
|
|
R/RF78
|
40mm
|
24mm
|
0.18~11
|
5.21~195.24
|
820
|
|
R/RF88
|
50mm
|
28mm
|
0.55~22
|
5.36~246.54
|
1550
|
|
R/RF98
|
60mm
|
38mm
|
0.55~30
|
4.49~289.6
|
3000
|
|
R/RF108
|
70mm
|
42mm
|
2.2~45
|
5.06~245.5
|
4300
|
|
R/RF138
|
90mm
|
55mm
|
5.5~55
|
5.51~223.34
|
8000
|
|
R/RF148
|
110mm
|
55mm
|
11~90
|
5.00~163.46
|
13000
|
|
R/RF168
|
120mm
|
70mm
|
11~160
|
8.77~196.41
|
18000
|
1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
