| Place of Origin: | China |
| Brand Name: | Shuowei |
| Certification: | CE SGS ISO9001 |
| Model Number: | R series |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Piece Per Month |
| Material Of Gear: | 20CrMnTi With High Precision Grinding | Material Of Shaft: | 40Cr With Carburizing And Quenching |
|---|---|---|---|
| Input Format: | IEC Flange, Direct With Motor, Shaft Input | Output SpeeGear Ratiod: | Any Ratio Custom Made |
| Heat Treatment: | Carburizing | Input Form: | IEC Flange / Input Shaft |
| High Light: | Inline helical bevel speed reducer,Cast Iron helical bevel speed reducer,AC inline helical gear reducer |
||

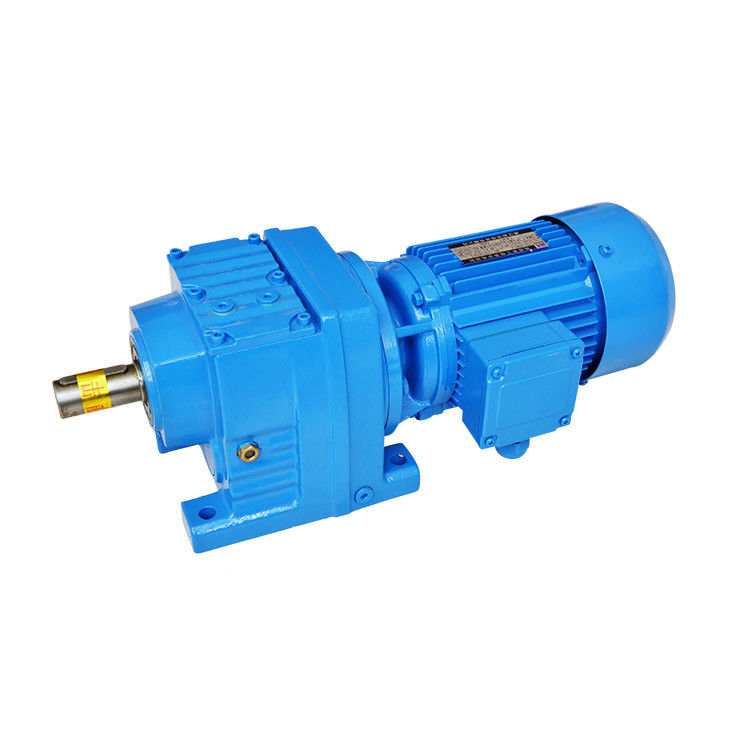

High Strength Cast Iron 220V-380V 50Hz 60Hz AC Electric Motor R Inline Helical Gear Box Speed Reducer
Based on modular combined system, we design and develop all kind series gear motor, which is the most common and advanced transmission device nowadays among international power transmission industry, with our strict quality criteria and quality control, we try our best to provide Germany standard and quality gearboxes with low cost, replace their product in the field of drive engineering.
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)
|
Houshing:
|
High-strength cast iron HT250
|
|
|
Gear material
|
20CrMnTi
|
|
|
shaft material:
|
Shaft-chromium steel-45#
|
|
|
Ratio:
|
customer-made
|
|
|
Gear Accuracy
|
7 to 6 level
|
|
|
Noise(Max)
|
60-70dB
|
|
|
inpupt options:
|
dire
|
|
|
Models
|
Output Shaft Dia.
|
Input Shaft Dia.
|
Power(kW)
|
Ratio
|
Max. Torque(Nm)
|
|
R/RF18
|
20mm
|
-
|
0.18~0.75
|
3.83~74.84
|
85
|
|
R/RF28
|
25mm
|
16mm
|
0.18~3
|
3.37~135.09
|
130
|
|
R/RF38
|
25mm
|
16mm
|
0.18~3
|
3.41~134.82
|
200
|
|
R/RF48
|
30mm
|
19mm
|
0.18~5.5
|
3.83~176.88
|
300
|
|
R/RF58
|
35mm
|
19mm
|
0.18~7.5
|
4.39~186.89
|
450
|
|
R/RF68
|
35mm
|
19mm
|
0.18~7.5
|
4.29~199.81
|
600
|
|
R/RF78
|
40mm
|
24mm
|
0.18~11
|
5.21~195.24
|
820
|
|
R/RF88
|
50mm
|
28mm
|
0.55~22
|
5.36~246.54
|
1550
|
|
R/RF98
|
60mm
|
38mm
|
0.55~30
|
4.49~289.6
|
3000
|
|
R/RF108
|
70mm
|
42mm
|
2.2~45
|
5.06~245.5
|
4300
|
|
R/RF138
|
90mm
|
55mm
|
5.5~55
|
5.51~223.34
|
8000
|
|
R/RF148
|
110mm
|
55mm
|
11~90
|
5.00~163.46
|
13000
|
|
R/RF168
|
120mm
|
70mm
|
11~160
|
8.77~196.41
|
18000
|
1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
