| Place of Origin: | China |
| Brand Name: | Shuowei |
| Certification: | CE SGS ISO9001 |
| Model Number: | R series |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Piece Per Month |
| Customized Support: | OEM, ODM | Applicable Industries: | : Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
|---|---|---|---|
| Input Speed: | 45-240rpm | Manufacturing Method Of Gear: | Cast Gear |
| Toothed Portion Shape: | Involute Spur Gear | Material: | Aluminum & Iron Coating |
| High Light: | 240rpm 0.18KW shaft mount gear reducer,240rpm 0.37KW shaft mount gear reducer,240rpm 1:30 helical bevel gear motor |
||

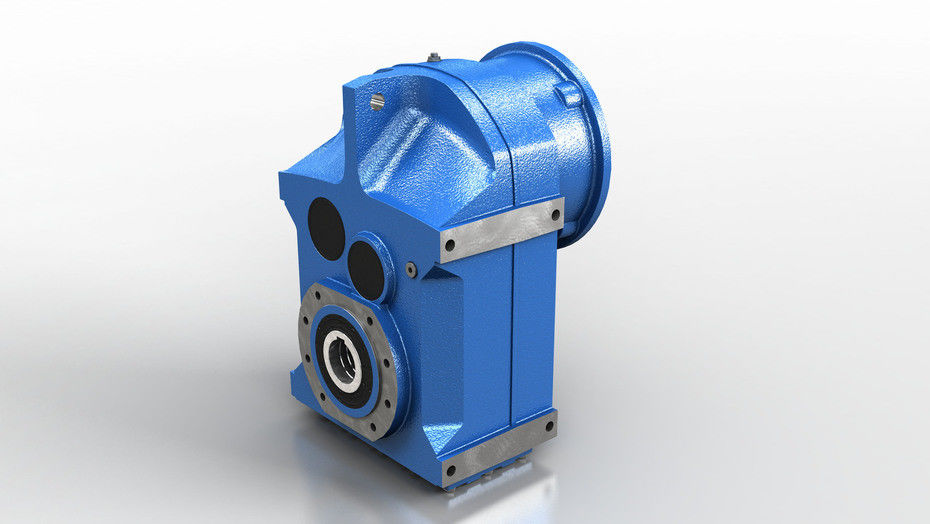

Bevel Gear Motor Shaft Mounted Gear Speed Reducer Gearbox Harmonic Drive Reducer
- The housing of one size can realize parallel shaftmodes and horizontal mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.
- Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficeintly.
- Input mode : motor connected flange ,shaft input.
- Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines , solid shaft with flange.
Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.
- HB series include sizes 3-26, number of stages is 1-4,ratio is 1.25-450. Combining with WR,S and K series, ratio will be higher.
Shaft Mounted Gear Speed Reducer Parameters:
| size number: | 40,50,60,70,80,100,120,135,147,155,175,200,250 |
| ratio: | 1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60 |
| color: | green, blue, silver, black and other customized color |
| material: |
housing is made of HT200 the worm wheel is made of aluminum bronze |
| packing: | Inner pack: use pp bag an Inner pack: use a plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request |
| bearing: | NSK & Homemade bearing |
| seal: |
SKF NAK |
| input power: | 0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw |
| shaft direction: | A,B,C,D,E |
| input form: | IEC flange for mounting motor,solid |
| output form: | solid shaft,hollow shaft |
| weight: | 4-360KGS |
| application: |
In industrial machine:foodstuff, ceramics,chemical, packing, printing,dyeing, woodworking,glass, and plastics |
| warranty: | 1 year |
Cycloid Gearbox Reducer applied for
- Belt conveyor drives
- Bucket elevator drives
- Agitator drives
- Hoisting gear drives
- Travelling gear drives
- Paper machine drives
- Dryer drives
- Water screw drives
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ:
Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.
Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
